How To Calculate Truss Forces. For a complete truss analysis, we need to: Trusses are used in the construction of nearly every road bridge you will encounter in your.

Trusses from www.engineeringtoolbox.com

(2) f x = ( l x l) f (3) f y = ( l y l) f. R = number of support reactions = 4. Assume all members to be in tension.

Source: www.comsol.com

Balance forces in the x direction. Calculating truss forces method of joints tells us what each beam or member is experiencing.

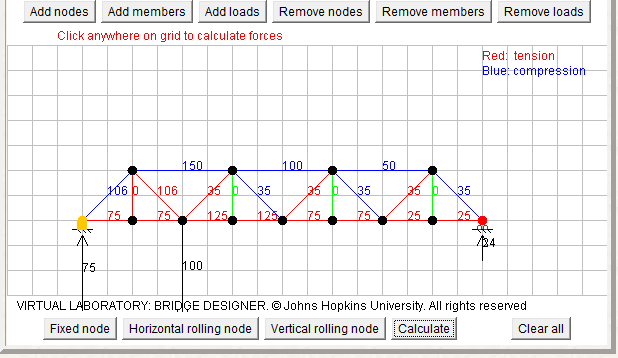

Source: nedhalebrahimalshomeli.wordpress.com

R = number of support reactions = 4. Assume all members to be in tension.

Source: constructionheadline.com

What are the forces in the. Balance forces in the x direction.

Source: www.engineeringtoolbox.com

Analysis of truss for finding the force values in all the members is the first and most important part for structural design. Our handy roof truss design calculator calculates the rake length of your roof by using the span, overhang, and pitch measurements.

Source: www.chegg.com

M = number of members = 13. This is a quick start guide for our free online truss calculator.

Source: justinketterer.com

In another words all forces acting on a joint must add up to zero. In this lesson, students learn the basics of the analysis of forces engineers perform at the truss joints to calculate the strength of a truss bridge.

Source: www.instructables.com

Also, long slender trusses such as parallel‐chord trusses behave similar to beams and we can apply our. The total force and force components are relative to their lengths, so:

Source: www.engineeringtoolbox.com

Click and drag nodes to create loads. Click on nodes to toggle the type of support.

(Pin, Horizontal Roller, Vertical Roller) Add Load:

If the forces acting on a joint don’t add up to zero then the joint would not be in equilibrium; I've also ignored that the axial tension in ab will cause position a to move,. It has a wide range of.

I've Ignored Shear In Members Ab And Ac;

Assume all members to be in tension. Calculate the reactions at the supports. This is a quick start guide for our free online truss calculator.

In Another Words All Forces Acting On A Joint Must Add Up To Zero.

From the equilibrium of the forces on the truss we have: Make the cut through three member of a truss because with three equilibrium. Balance forces in the x direction.

(1) Determine The Values Of The Reaction Components, And.

Therefore, the truss is indeterminate to the 1st order at. For a complete truss analysis, we need to: Calculating truss forces solving for the reaction forces

We Will Start By Looking At A Simple Example Of A 5 Member Truss System:

Click on nodes to toggle the type of support. This free online roof truss calculator is a truss design tool that generates the axial forces, reactions of completely customisable 2d truss structures or rafters. (2) f x = ( l x l) f (3) f y = ( l y l) f.
